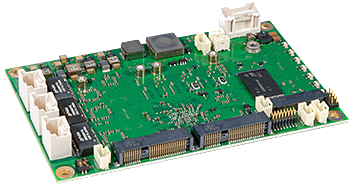

| 概要 |
| プロセッサ |
Dual Core 1.0GHz ARM SoC |
| メモリ |
2GByte DDR3L ECC 付, 512MByte NAND Flash |
| 寸法 |
75mm x 115mm |
| 電源 |
8 〜 36VDC <6W (estimate without extensions) |
| インタフェース |
| イーサネット |
3 x イーサネット 10/100/1000MBit、自動 MDI/MDIX、ロック可能なヘッダーで利用可能 |
| mPCI/mSATA |
1 x mPCI/mSATA Combo Slot, SIM カード用ロック可能なヘッダー付き |
| mPCI |
1 x mPCI Slot, SIM カード用ロック可能なヘッダー付き |
| M.2 スロット |
1 x M.2 Slot Type B Key, for socket 2 USB3.0 WWAN, Type 3042-S3-B
dual SIM サポート |
| USB |
2 x USB2.0 (ロック可能なヘッダー) |
| 動作温度・湿度 |
| 動作温度 |
-20℃ 〜 +60℃ |
| 拡張温度 |
温度拡張オプション -40℃ 〜 +85℃ |
| 保存温度 |
-45℃ 〜 +90℃ |
| 湿度 |
5%〜95% 結露無 オプションでコーティング可能 |
| 適合規格 |
| The microGUARD Family is designed to meet or exceed the most common standards.
Particular references are: |
| EMC |
EN 55022, EN 55024, EN 61000, MIL-STD-461E |
| 衝撃 振動 |
EN 60068 |
| 耐環境 安全性 |
EN 50155, MIL-STD-810G, EN 60601, IEC / EN 62368 |
| 認証リスト |
CE, IEC 60945, IACS E10 |
| |
| ソフトウエア |
| The microGUARD comes preinstalled with an adapted version of OpenWRT
(www.openwrt.org). This Linux based embedded distribution provides all
functionality required for operation as IPV4 and/or IPV6 firewall and router.
The vast amount of additional packages available in conjunction with MPL
support allows you to create a solution for every routing or firewall project.
Most of the configuration of the firmware installed can be done using a
web based interface. For more specialized requirements, a console based
configuration utility is available. All configuration is stored on the
device in a human friendly text format and can be modified using a text
editor, too. |
| 機能およびプロトコル |
- TCP/IP V4 and V6, IPsec
- DNS server/forwarder
- QoS (Quality Of Service) capable
- Support for dynamic DNS providers
- SIIT(IPV4-over-IPV6 translation)
- OpenVPN support
- Miredo/Teredo (IPV6 over IPV4 tunneling)
- OpenConnect client support
|
- PPP (Point-to-Point Protocol)
- Firewall based on Linux iptables
- Network address translation
- SSH and telnet device access
- Multi WAN Setup (failover and load balancing)
- Snort (lightweight intrusion detection)
- DHCP Server for IPV4 and IPV6
- Routing daemons (OSPF, RIP, BGP, ...)
|
|
| Further functionality can be installed using a package repository
that contains more then 2000 precompiled applications ready to install.
A software development kit (SDK), allowing to implement customer specific
applications, is available as well. |
